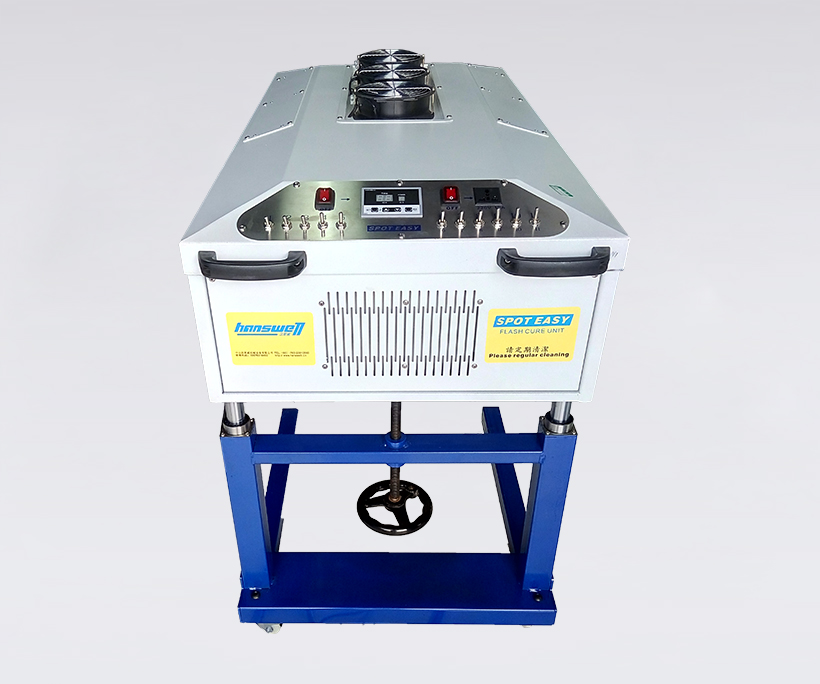

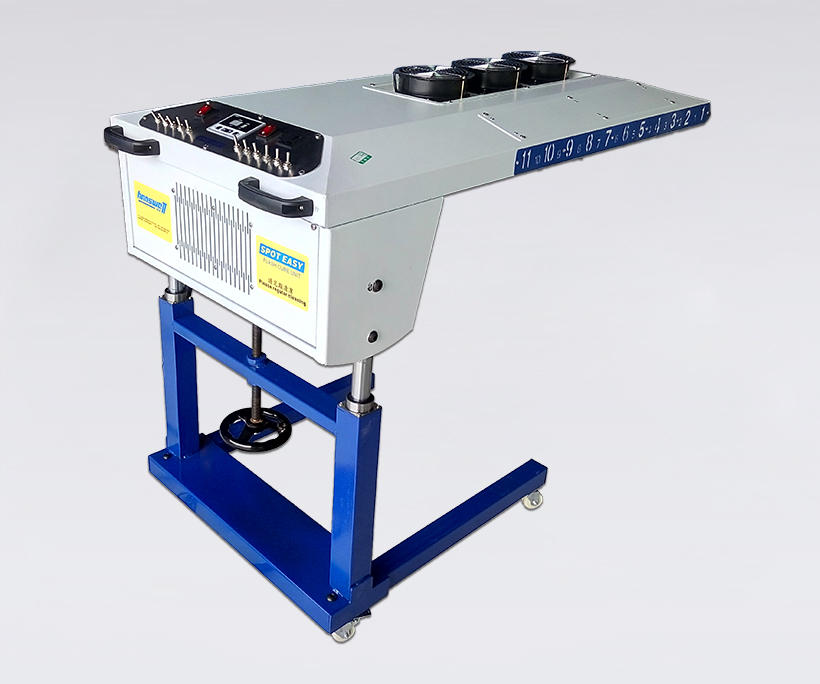

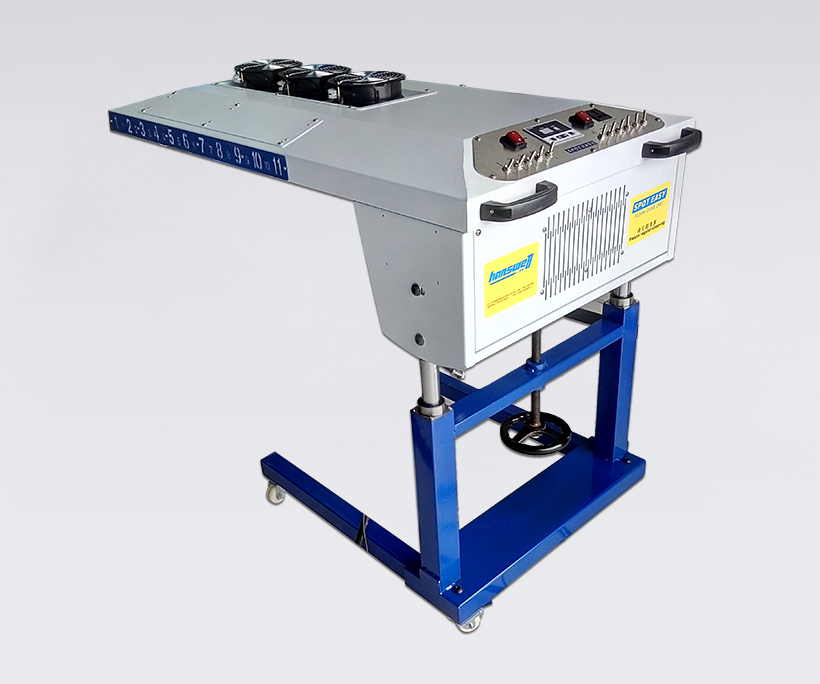

Mobile dryer
Introduction:
Mobile dryer points fixed lampshade and swing type two kinds;Intelligent machines, drying chimney with swing, lamp power can be adjusted independently, drying area can be adjusted;High radiation infrared heating tube, fast drying effect is good.Drying time, power, digital display.
Parameter：
models | size L*W*H(mm) | voltage V | frequency HZ | current A | power KW | area L*W(mm) |
H5 | 1250*650*780 (adjustable) | 380 | 50
| 25 | 0~16.5 |
700*550 |
BH5 | 1385*695*780 (adjustable) | 23 | 0~16.5 | 770*550 | ||
H7 | 1310*725*780 (adjustable) | 29 | 0~19 | 850*650 |
Function:
1 、higher intellisense and swing drying.
2 、power regulation - power points 1 ~ 5 gear, gear is the greater the power, the higher the temperature is (temperature range at room temperature to 200 degrees)
3、 lamp control - can be started at will, close any one or more pens infrared lamp.
4 、heating time, heating time points 0 ~ 20 seconds, can change automatically according to the need to add, subtract the heating time.
5、 time, heating time on the countdown display on the screen, allows users to better grasp and control the length of the heating time.
6、 the cooling fan, in addition to its heat dissipation function, also play a role to transfer heat to the printing on the surface of the parts, the wind can be adjusted according to need.
7 、drying area - adjustable drying area in 700 ~ 700 * 850 * 650 (mm)
8、 lamp switch, switch work long or short tubes according to need.
9 、height adjustment - refers to the vertical distance on the surface of the tube surface and printing machine parts, can be adjusted according to the need (range in 10 mm to 200 mm)
10、 mobile - the machine support is equipped with four mobile pulley respectively, can be convenient and quick moving machines.
Advantages: quick drying, good effect, simple operation, energy conservation, environmental protection, excellent performance, powerful, durable, low maintenance rate, energy saving save electricity above 30%
Fuselage shell: fine steel material to make a hard and durable of the fuselage, the whole body of the lacquer that bake to imported cars chassis not to drop paint, does not rust, easy cleaning, beautiful appearance design and easy!
Note: special dimensions and functions can be customized according to customer's requirement!
